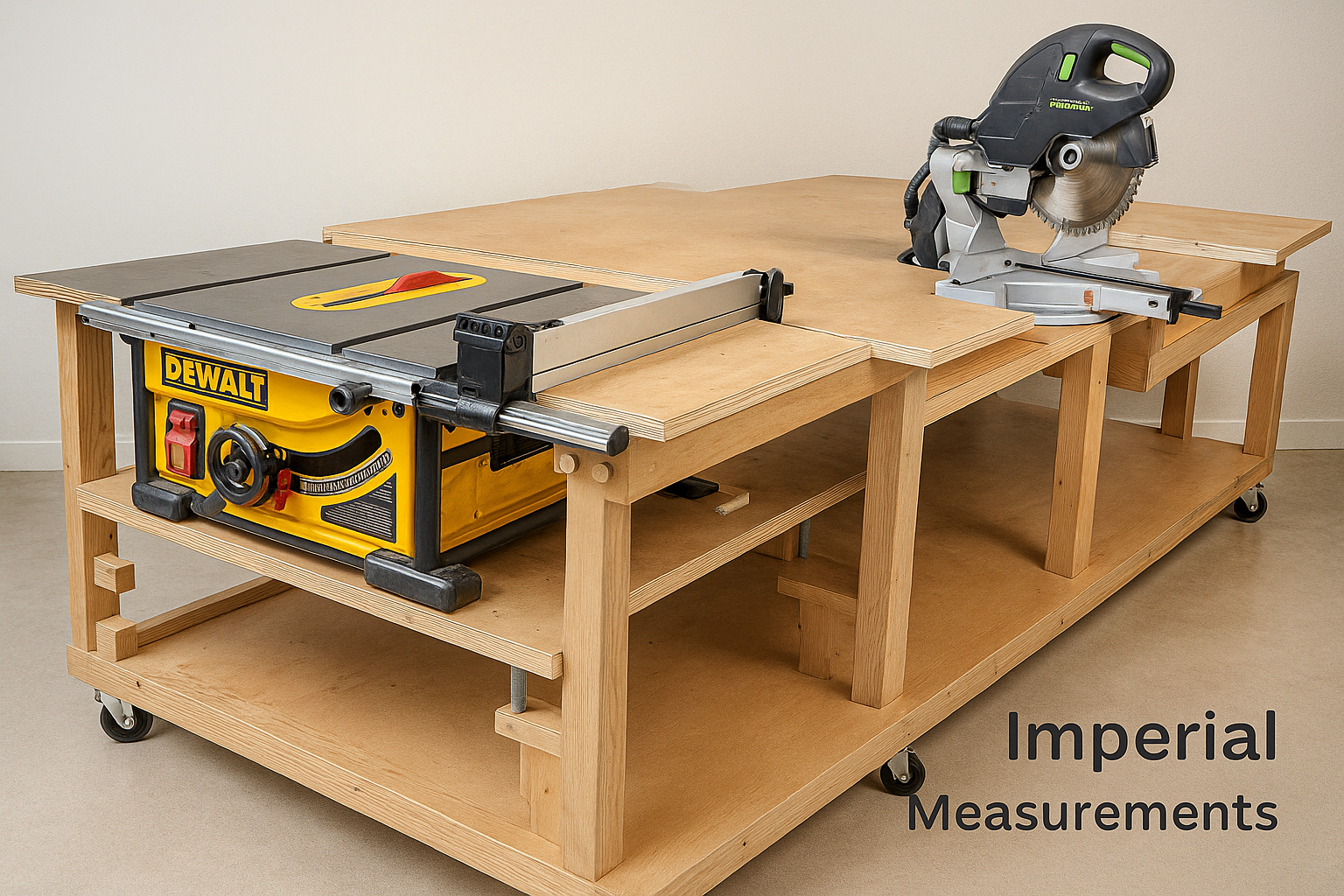

Table Saw Miter Saw WORKBENCH Imperial Plan

At this time, this plan is available in English Language only.

I've included a Tool list, just scroll down towards the bottom of the page 😀

This product now contains two plans with one purchase and it includes a separate "Modification Guide".

What's included:

One plan that utilizes regular size 2x4's (3 1/2 inch x 1 1/2 inch) to build the workbench.

One plan that utilizes rough cut dimensional lumber measuring 2 inch X 4 inch to build the workbench. This lumber was planed to final thickness of 3 5/8 inch X 1 13/16 inch and can be found at lumber yards or saw mills.

One Modification Guide - This guide is packed with valuable information to make your build as smooth as possible, such as:

✅ Useful tips for beginners.

✅ How you can use standard 2x4s that have been planed for a clean, square-edged finish (final dimensions: 1 3/8" x 3 3/8") and build your workbench using this size material!

✅ Customize the workbench to perfectly fit your miter saw and table saw.

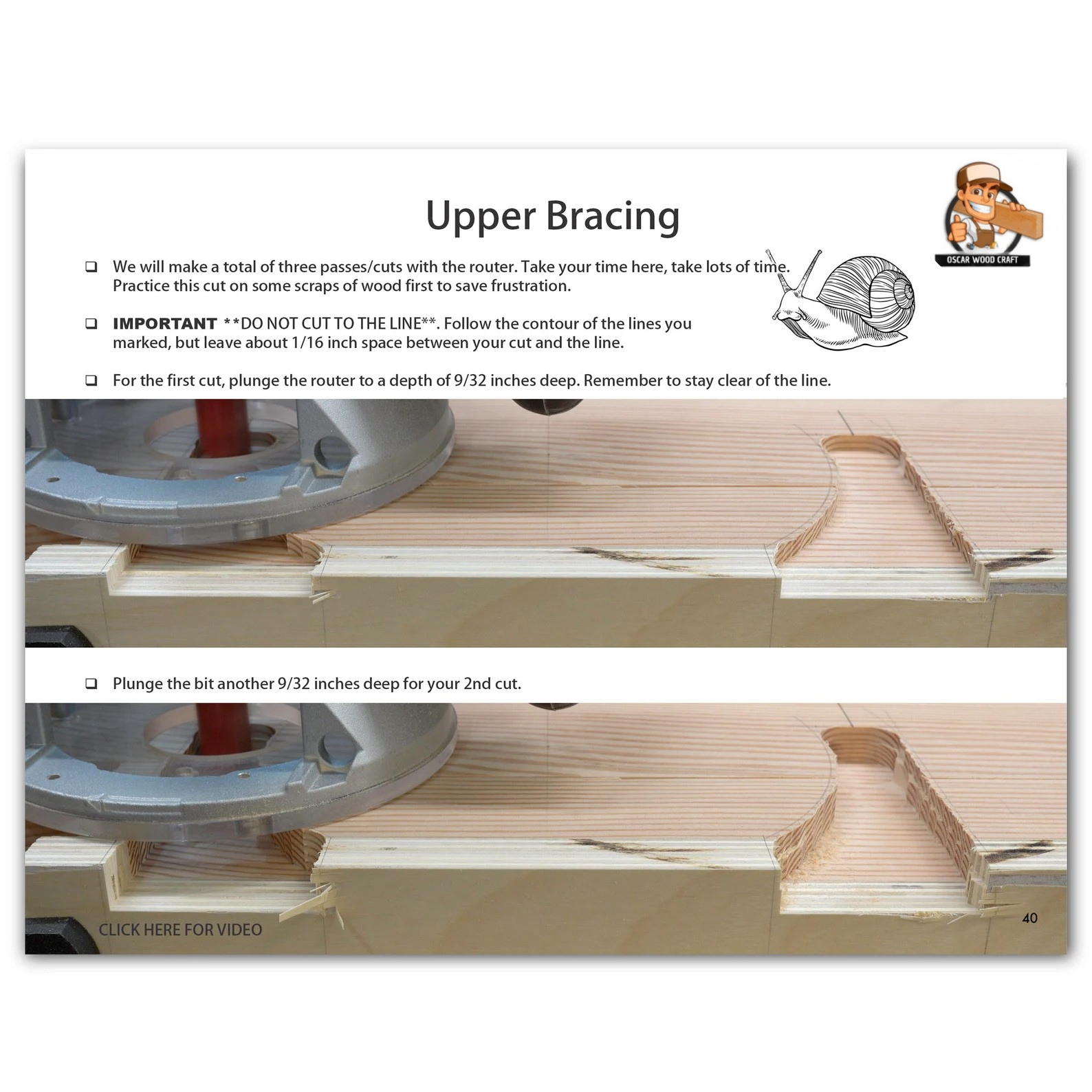

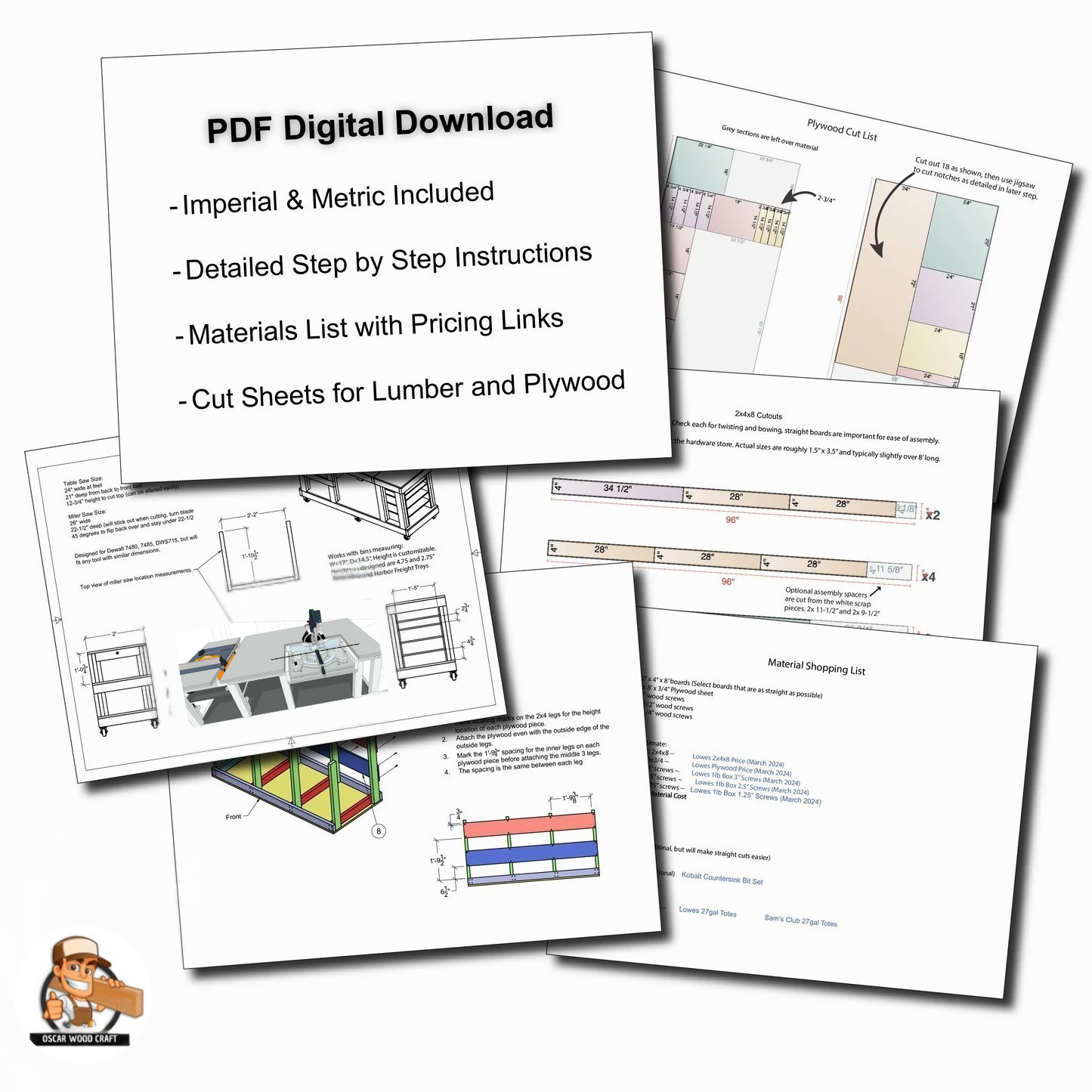

DIY woodworking plan to build a Table Saw + Miter Saw Workbench. These plans are saved in PDF format and will open on any media device. They are easy to follow with step by step instructions that can be printed on 8.5 X 11 paper. The plans come with a cut list, as well as a supply list so you know exactly what is required to build the workbench. I've included links to all of the supplies required, some of which are from Amazon products. As an Amazon Associate I earn from qualifying purchases at no cost to you.

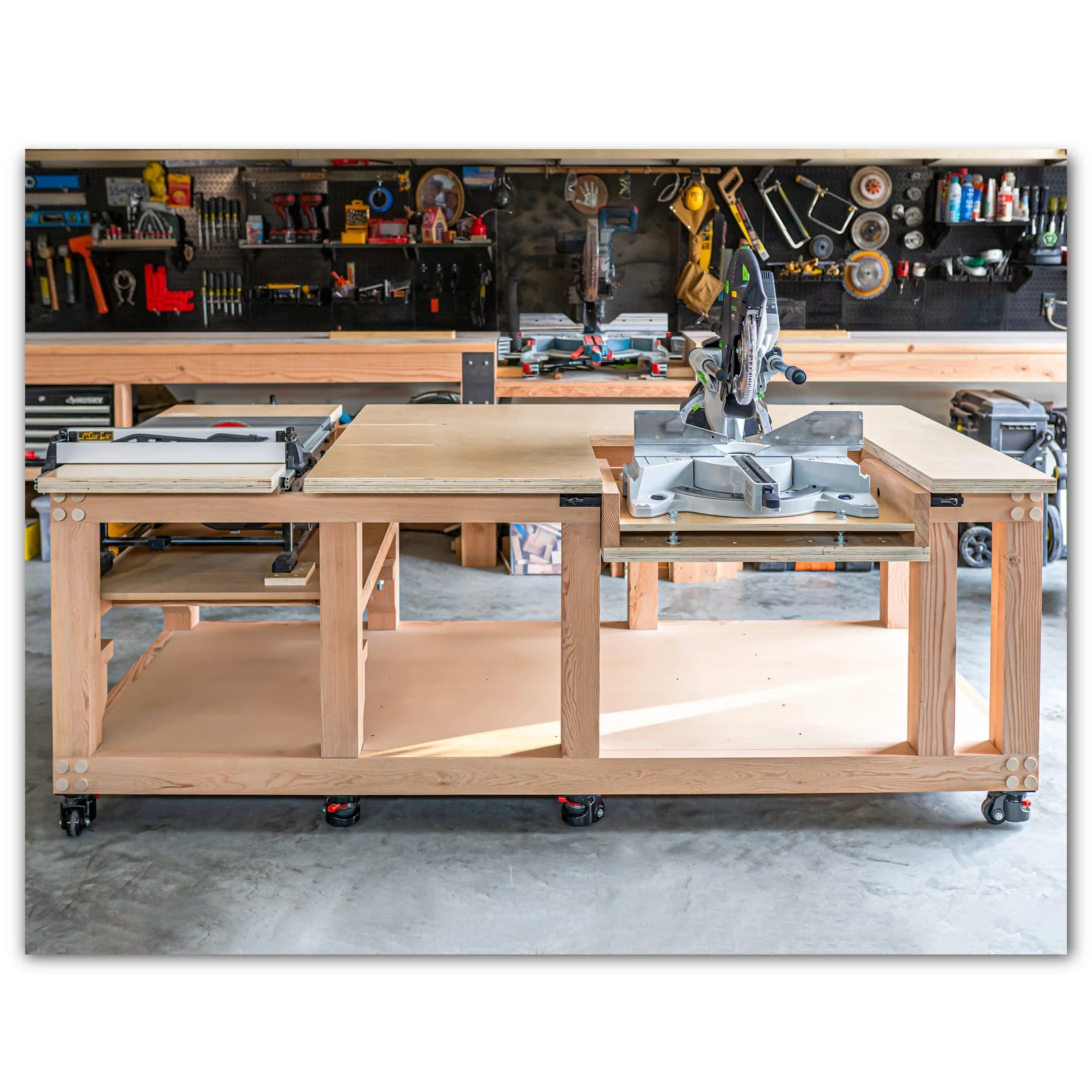

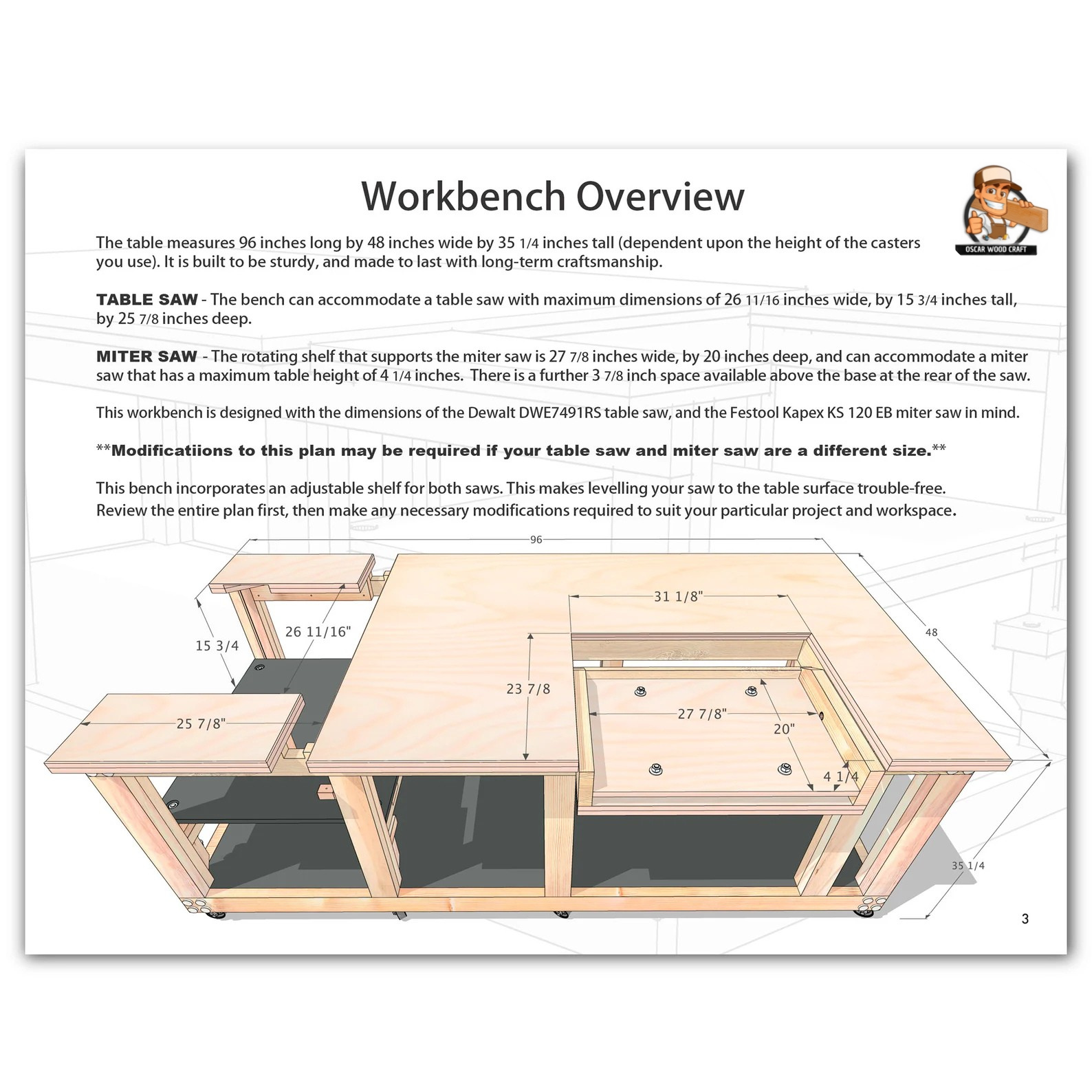

The table measures:
96 inches long.
48 inches wide.
35 to 36 inches high depending upon the height of the casters you use.

It is made to accommodate a table saw that has maximum dimensions of:
26 11/16 inches wide. (Can be altered to 36 inches wide)
15 ¾ inches tall.
25 ⅞ inches deep.

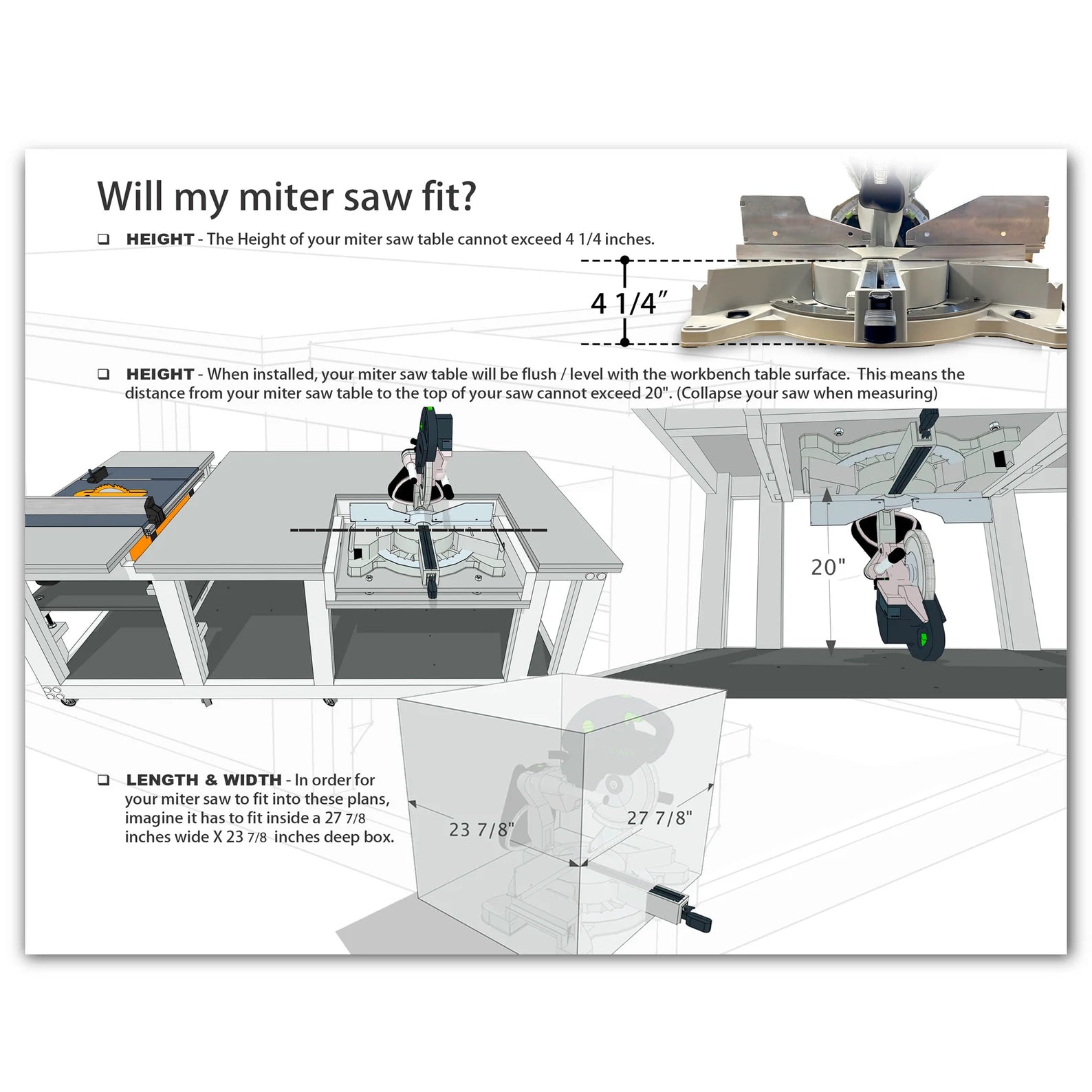

It is made to accommodate a miter saw that has maximum dimensions of:
27 ⅞ inches wide.
4 ¼ inches tall (from the bottom of the base, to the saw's table surface).
20 - 23 ⅞ inches deep.

Features:

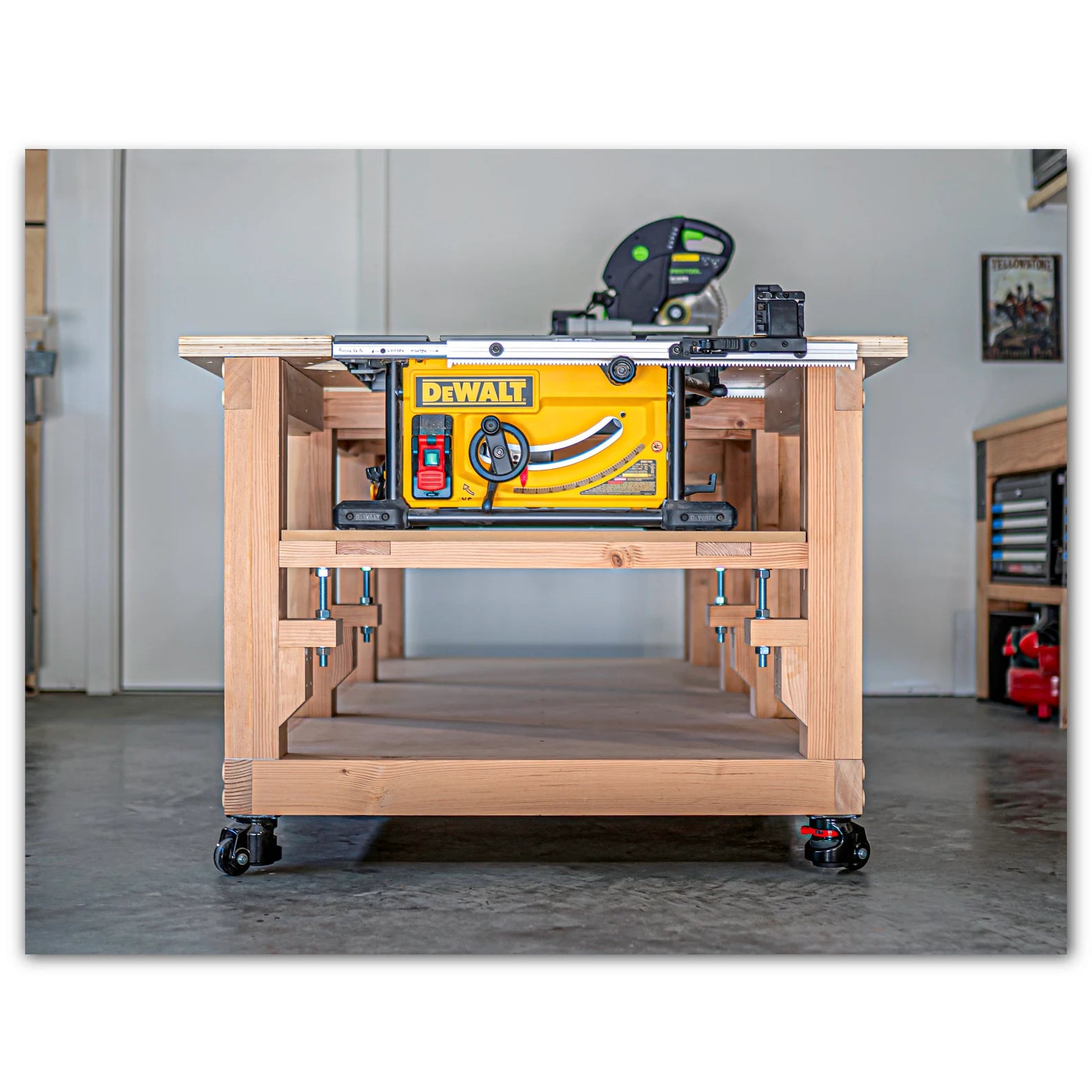

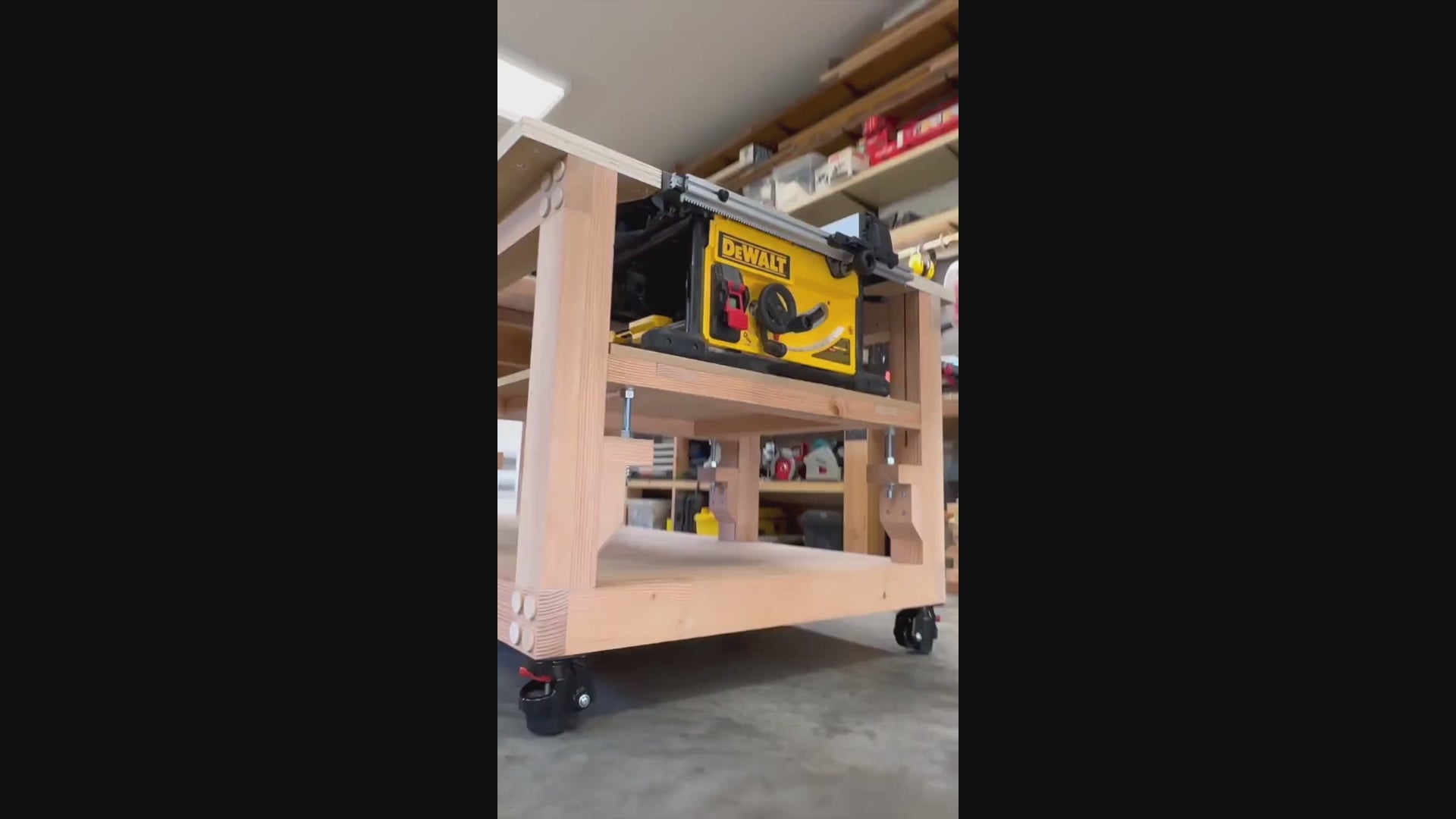

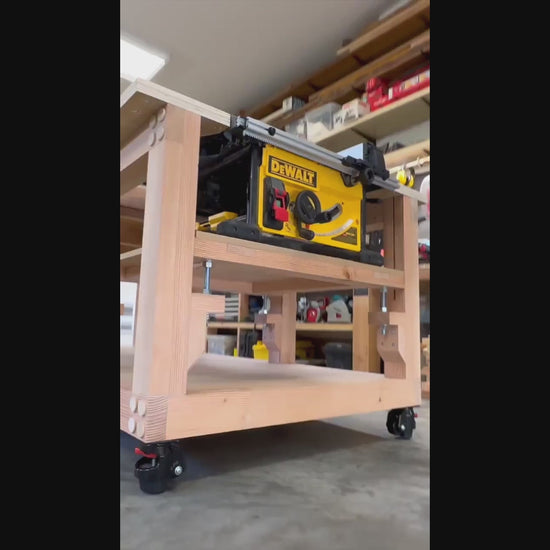

- The bench incorporates an adjustable shelf for both the table saw and the miter saw. This makes levelling the saw to the table surface trouble-free.

- The Miter Saw shelf rotates 180 degrees out of the way when not in use, leaving a smooth and unobstructed work surface.

- The bench acts as an out-feed table.

- There is plenty of room for storage on the bottom shelf for wood, tools, whatever you can think of.

- It is mobile, so it easily moves around your shop or garage when you need the extra space.

- The surface is constructed with two full sheets of plywood that will last for years. If you are really hard on the bench, you can replace the top layer of plywood, making the bench new again.

- It is built to be sturdy, and made to last with long-term craftsmanship.

Tool List

Table Saw
Miter Saw
Router
Circular Saw
Jig Saw or small hand saw
Drill
